spring security oauth2 jwt过期时间不准原因分析以及解决办法

java
161

问题描述

资源服务器在校验token无异常的情况下才会返回资源，所以需要校验token是否过期，测试阶段给token设置的过期时间是30s，但是每次基本上都会在90s左右才能正确验证token已过期，总会出现60秒的延迟，带着疑问就去跟踪了一下源码，整个排查思路如下

解决办法在最下面

配置过期的异常处理

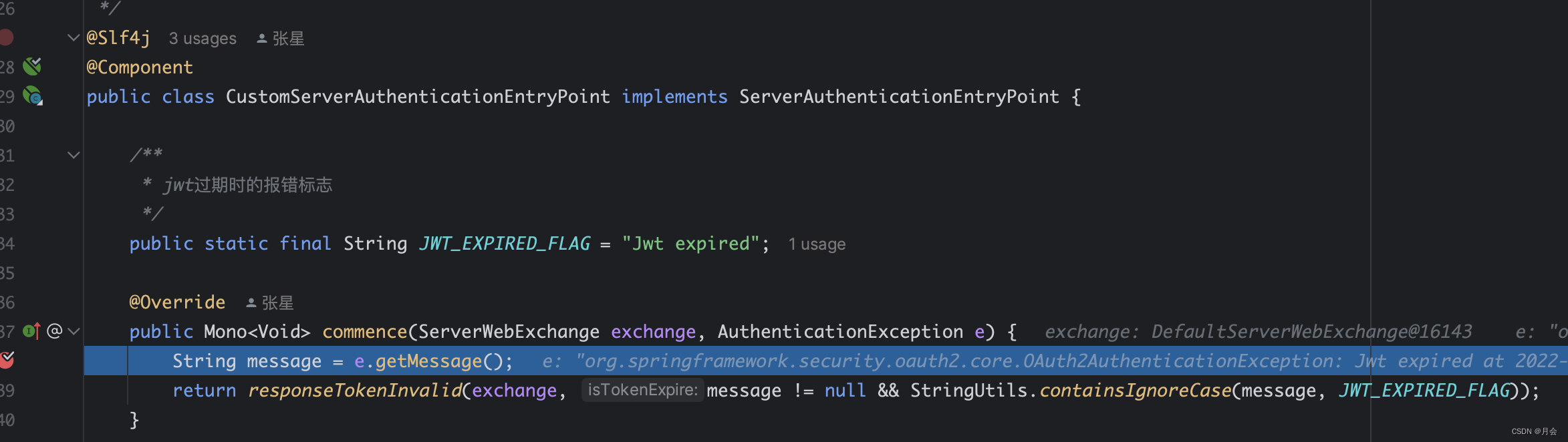

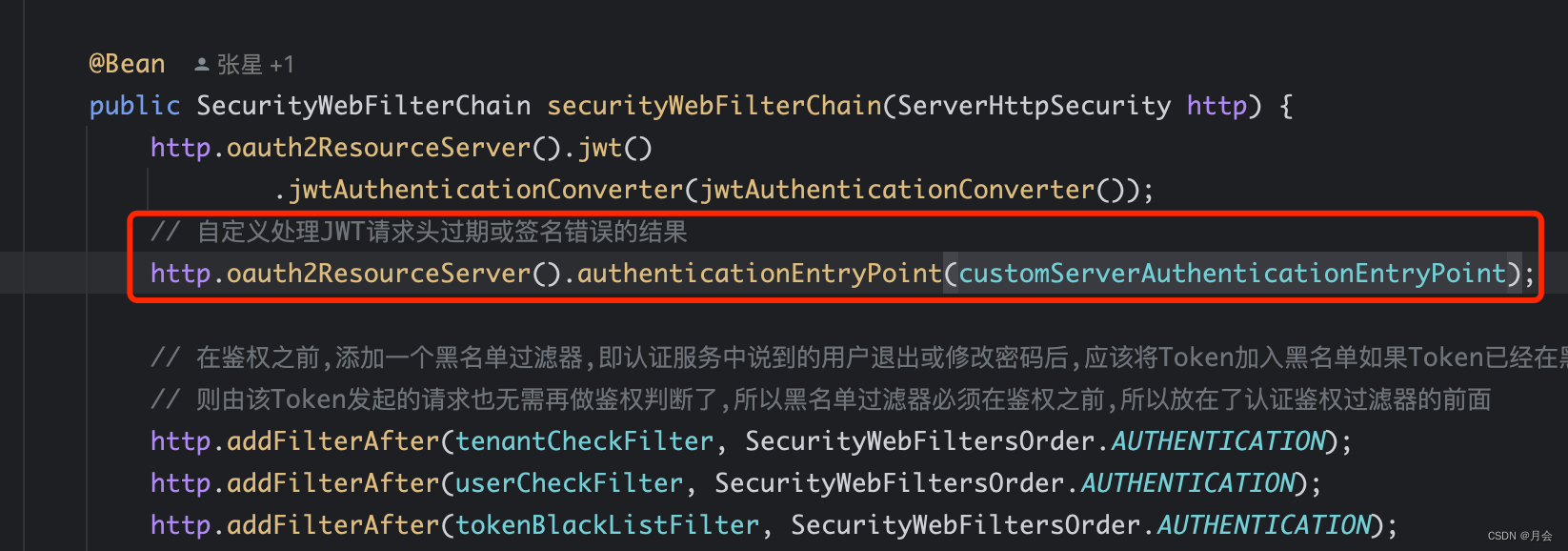

首先给资源服务器配置一个异常的处理器

将异常信息AuthenticationException e打印出来

org.springframework.security.oauth2.core.OAuth2AuthenticationException: Jwt expired at 2022-11-05T16:48:31Z
    at org.springframework.security.oauth2.server.resource.authentication.JwtReactiveAuthenticationManager.onError(JwtReactiveAuthenticationManager.java:82)
    at reactor.core.publisher.Mono.lambda$onErrorMap$29(Mono.java:3256)
    at reactor.core.publisher.Mono.lambda$onErrorResume$31(Mono.java:3346)
    at reactor.core.publisher.FluxOnErrorResume$ResumeSubscriber.onError(FluxOnErrorResume.java:88)
    at reactor.core.publisher.FluxMapFuseable$MapFuseableSubscriber.onError(FluxMapFuseable.java:134)
    at reactor.core.publisher.MonoFlatMap$FlatMapMain.onError(MonoFlatMap.java:165)
    at reactor.core.publisher.MonoFlatMap$FlatMapMain.secondError(MonoFlatMap.java:185)
    at reactor.core.publisher.MonoFlatMap$FlatMapInner.onError(MonoFlatMap.java:251)
    at reactor.core.publisher.FluxOnErrorResume$ResumeSubscriber.onError(FluxOnErrorResume.java:100)
    at reactor.core.publisher.Operators.error(Operators.java:182)
    at reactor.core.publisher.MonoError.subscribe(MonoError.java:52)
    at reactor.core.publisher.Mono.subscribe(Mono.java:4105)
    at reactor.core.publisher.FluxOnErrorResume$ResumeSubscriber.onError(FluxOnErrorResume.java:97)
    at reactor.core.publisher.FluxMap$MapSubscriber.onError(FluxMap.java:126)
    at reactor.core.publisher.FluxMap$MapSubscriber.onNext(FluxMap.java:106)
    at reactor.core.publisher.FluxMap$MapSubscriber.onNext(FluxMap.java:114)
    at reactor.core.publisher.FluxMap$MapSubscriber.onNext(FluxMap.java:114)
    at reactor.core.publisher.FluxOnErrorResume$ResumeSubscriber.onNext(FluxOnErrorResume.java:73)
    at reactor.core.publisher.FluxSwitchIfEmpty$SwitchIfEmptySubscriber.onNext(FluxSwitchIfEmpty.java:67)
    at reactor.core.publisher.Operators$MonoSubscriber.complete(Operators.java:1630)
    at reactor.core.publisher.MonoFlatMap$FlatMapInner.onNext(MonoFlatMap.java:241)
    at reactor.core.publisher.Operators$ScalarSubscription.request(Operators.java:2186)
    at reactor.core.publisher.MonoFlatMap$FlatMapInner.onSubscribe(MonoFlatMap.java:230)
    at reactor.core.publisher.MonoJust.subscribe(MonoJust.java:54)
    at reactor.core.publisher.MonoDefer.subscribe(MonoDefer.java:52)
    at reactor.core.publisher.MonoFlatMap$FlatMapMain.onNext(MonoFlatMap.java:150)
    at reactor.core.publisher.FluxSwitchIfEmpty$SwitchIfEmptySubscriber.onNext(FluxSwitchIfEmpty.java:67)
    at reactor.core.publisher.Operators$ScalarSubscription.request(Operators.java:2186)
    at reactor.core.publisher.Operators$MultiSubscriptionSubscriber.set(Operators.java:1994)
    at reactor.core.publisher.Operators$MultiSubscriptionSubscriber.onSubscribe(Operators.java:1868)
    at reactor.core.publisher.MonoJust.subscribe(MonoJust.java:54)
    at reactor.core.publisher.InternalMonoOperator.subscribe(InternalMonoOperator.java:55)
    at reactor.core.publisher.MonoFlatMap$FlatMapMain.onNext(MonoFlatMap.java:150)
    at reactor.core.publisher.FluxMapFuseable$MapFuseableSubscriber.onNext(FluxMapFuseable.java:121)
    at reactor.core.publisher.FluxMapFuseable$MapFuseableSubscriber.onNext(FluxMapFuseable.java:121)
    at reactor.core.publisher.FluxFilterFuseable$FilterFuseableSubscriber.onNext(FluxFilterFuseable.java:112)
    at reactor.core.publisher.Operators$ScalarSubscription.request(Operators.java:2186)
    at reactor.core.publisher.FluxFilterFuseable$FilterFuseableSubscriber.request(FluxFilterFuseable.java:184)
    at reactor.core.publisher.FluxMapFuseable$MapFuseableSubscriber.request(FluxMapFuseable.java:162)
    at reactor.core.publisher.FluxMapFuseable$MapFuseableSubscriber.request(FluxMapFuseable.java:162)
    at reactor.core.publisher.MonoFlatMap$FlatMapMain.onSubscribe(MonoFlatMap.java:103)
    at reactor.core.publisher.FluxMapFuseable$MapFuseableSubscriber.onSubscribe(FluxMapFuseable.java:90)
    at reactor.core.publisher.FluxMapFuseable$MapFuseableSubscriber.onSubscribe(FluxMapFuseable.java:90)
    at reactor.core.publisher.FluxFilterFuseable$FilterFuseableSubscriber.onSubscribe(FluxFilterFuseable.java:81)
    at reactor.core.publisher.MonoJust.subscribe(MonoJust.java:54)
    at reactor.core.publisher.Mono.subscribe(Mono.java:4105)
    at reactor.core.publisher.FluxFlatMap.trySubscribeScalarMap(FluxFlatMap.java:202)
    at reactor.core.publisher.MonoFlatMap.subscribeOrReturn(MonoFlatMap.java:53)
    at reactor.core.publisher.InternalMonoOperator.subscribe(InternalMonoOperator.java:48)
    at reactor.core.publisher.MonoFlatMap$FlatMapMain.onNext(MonoFlatMap.java:150)
    at reactor.core.publisher.FluxSwitchIfEmpty$SwitchIfEmptySubscriber.onNext(FluxSwitchIfEmpty.java:67)
    at reactor.core.publisher.Operators$MonoSubscriber.complete(Operators.java:1630)
    at reactor.core.publisher.MonoFlatMap$FlatMapInner.onNext(MonoFlatMap.java:241)
    at reactor.core.publisher.FluxMapFuseable$MapFuseableSubscriber.onNext(FluxMapFuseable.java:121)
    at reactor.core.publisher.Operators$ScalarSubscription.request(Operators.java:2186)
    at reactor.core.publisher.FluxMapFuseable$MapFuseableSubscriber.request(FluxMapFuseable.java:162)
    at reactor.core.publisher.MonoFlatMap$FlatMapInner.onSubscribe(MonoFlatMap.java:230)
    at reactor.core.publisher.FluxMapFuseable$MapFuseableSubscriber.onSubscribe(FluxMapFuseable.java:90)
    at reactor.core.publisher.MonoJust.subscribe(MonoJust.java:54)
    at reactor.core.publisher.InternalMonoOperator.subscribe(InternalMonoOperator.java:55)
    at reactor.core.publisher.MonoFlatMap$FlatMapMain.onNext(MonoFlatMap.java:150)
    at reactor.core.publisher.FluxFilterFuseable$FilterFuseableSubscriber.onNext(FluxFilterFuseable.java:112)
    at reactor.core.publisher.Operators$ScalarSubscription.request(Operators.java:2186)
    at reactor.core.publisher.FluxFilterFuseable$FilterFuseableSubscriber.request(FluxFilterFuseable.java:184)
    at reactor.core.publisher.MonoFlatMap$FlatMapMain.onSubscribe(MonoFlatMap.java:103)
    at reactor.core.publisher.FluxFilterFuseable$FilterFuseableSubscriber.onSubscribe(FluxFilterFuseable.java:81)
    at reactor.core.publisher.MonoJust.subscribe(MonoJust.java:54)
    at reactor.core.publisher.InternalMonoOperator.subscribe(InternalMonoOperator.java:55)
    at reactor.core.publisher.MonoDefer.subscribe(MonoDefer.java:52)
    at reactor.core.publisher.InternalMonoOperator.subscribe(InternalMonoOperator.java:55)
    at reactor.core.publisher.MonoDefer.subscribe(MonoDefer.java:52)
    at reactor.core.publisher.InternalMonoOperator.subscribe(InternalMonoOperator.java:55)
    at reactor.core.publisher.MonoDefer.subscribe(MonoDefer.java:52)
    at reactor.core.publisher.InternalMonoOperator.subscribe(InternalMonoOperator.java:55)
    at reactor.core.publisher.MonoDefer.subscribe(MonoDefer.java:52)
    at reactor.core.publisher.MonoDefer.subscribe(MonoDefer.java:52)
    at reactor.core.publisher.MonoFlatMap$FlatMapMain.onNext(MonoFlatMap.java:150)
    at reactor.core.publisher.FluxMapFuseable$MapFuseableSubscriber.onNext(FluxMapFuseable.java:121)
    at reactor.core.publisher.FluxMapFuseable$MapFuseableSubscriber.onNext(FluxMapFuseable.java:121)
    at reactor.core.publisher.Operators$MonoSubscriber.complete(Operators.java:1630)
    at reactor.core.publisher.MonoFlatMap$FlatMapInner.onNext(MonoFlatMap.java:241)
    at reactor.core.publisher.Operators$MonoSubscriber.complete(Operators.java:1630)
    at reactor.core.publisher.MonoCollectList$MonoCollectListSubscriber.onComplete(MonoCollectList.java:121)
    at reactor.core.publisher.FluxIterable$IterableSubscription.fastPath(FluxIterable.java:333)
    at reactor.core.publisher.FluxIterable$IterableSubscription.request(FluxIterable.java:198)
    at reactor.core.publisher.MonoCollectList$MonoCollectListSubscriber.onSubscribe(MonoCollectList.java:72)
    at reactor.core.publisher.FluxIterable.subscribe(FluxIterable.java:139)
    at reactor.core.publisher.FluxIterable.subscribe(FluxIterable.java:63)
    at reactor.core.publisher.MonoFromFluxOperator.subscribe(MonoFromFluxOperator.java:72)
    at reactor.core.publisher.MonoFlatMap$FlatMapMain.onNext(MonoFlatMap.java:150)
    at reactor.core.publisher.FluxSwitchIfEmpty$SwitchIfEmptySubscriber.onNext(FluxSwitchIfEmpty.java:67)
    at reactor.core.publisher.MonoNext$NextSubscriber.onNext(MonoNext.java:76)
    at reactor.core.publisher.FluxFilterWhen$FluxFilterWhenSubscriber.drain(FluxFilterWhen.java:295)
    at reactor.core.publisher.FluxFilterWhen$FluxFilterWhenSubscriber.onNext(FluxFilterWhen.java:134)
    at reactor.core.publisher.FluxIterable$IterableSubscription.slowPath(FluxIterable.java:243)
    at reactor.core.publisher.FluxIterable$IterableSubscription.request(FluxIterable.java:201)
    at reactor.core.publisher.FluxFilterWhen$FluxFilterWhenSubscriber.onSubscribe(FluxFilterWhen.java:194)
    at reactor.core.publisher.FluxIterable.subscribe(FluxIterable.java:139)
    at reactor.core.publisher.FluxIterable.subscribe(FluxIterable.java:63)
    at reactor.core.publisher.InternalMonoOperator.subscribe(InternalMonoOperator.java:55)
    at reactor.core.publisher.MonoDefer.subscribe(MonoDefer.java:52)
    at reactor.core.publisher.InternalMonoOperator.subscribe(InternalMonoOperator.java:55)
    at reactor.core.publisher.MonoDefer.subscribe(MonoDefer.java:52)
    at reactor.core.publisher.InternalMonoOperator.subscribe(InternalMonoOperator.java:55)
    at reactor.core.publisher.MonoDefer.subscribe(MonoDefer.java:52)
    at reactor.core.publisher.Mono.subscribe(Mono.java:4105)
    at reactor.core.publisher.MonoIgnoreThen$ThenIgnoreMain.drain(MonoIgnoreThen.java:172)
    at reactor.core.publisher.MonoIgnoreThen.subscribe(MonoIgnoreThen.java:56)
    at reactor.core.publisher.InternalMonoOperator.subscribe(InternalMonoOperator.java:55)
    at reactor.netty.http.server.HttpServerHandle.onStateChange(HttpServerHandle.java:64)
    at reactor.netty.tcp.TcpServerBind$ChildObserver.onStateChange(TcpServerBind.java:226)
    at reactor.netty.http.server.HttpServerOperations.onInboundNext(HttpServerOperations.java:441)
    at reactor.netty.channel.ChannelOperationsHandler.channelRead(ChannelOperationsHandler.java:89)
    at io.netty.channel.AbstractChannelHandlerContext.invokeChannelRead(AbstractChannelHandlerContext.java:374)
    at io.netty.channel.AbstractChannelHandlerContext.invokeChannelRead(AbstractChannelHandlerContext.java:360)
    at io.netty.channel.AbstractChannelHandlerContext.fireChannelRead(AbstractChannelHandlerContext.java:352)
    at reactor.netty.http.server.HttpTrafficHandler.channelRead(HttpTrafficHandler.java:167)
    at io.netty.channel.AbstractChannelHandlerContext.invokeChannelRead(AbstractChannelHandlerContext.java:374)
    at io.netty.channel.AbstractChannelHandlerContext.invokeChannelRead(AbstractChannelHandlerContext.java:360)
    at io.netty.channel.AbstractChannelHandlerContext.fireChannelRead(AbstractChannelHandlerContext.java:352)
    at io.netty.channel.CombinedChannelDuplexHandler$DelegatingChannelHandlerContext.fireChannelRead(CombinedChannelDuplexHandler.java:438)
    at io.netty.handler.codec.ByteToMessageDecoder.fireChannelRead(ByteToMessageDecoder.java:326)
    at io.netty.handler.codec.ByteToMessageDecoder.channelRead(ByteToMessageDecoder.java:300)
    at io.netty.channel.CombinedChannelDuplexHandler.channelRead(CombinedChannelDuplexHandler.java:253)
    at io.netty.channel.AbstractChannelHandlerContext.invokeChannelRead(AbstractChannelHandlerContext.java:374)
    at io.netty.channel.AbstractChannelHandlerContext.invokeChannelRead(AbstractChannelHandlerContext.java:360)
    at io.netty.channel.AbstractChannelHandlerContext.fireChannelRead(AbstractChannelHandlerContext.java:352)
    at io.netty.channel.DefaultChannelPipeline$HeadContext.channelRead(DefaultChannelPipeline.java:1422)
    at io.netty.channel.AbstractChannelHandlerContext.invokeChannelRead(AbstractChannelHandlerContext.java:374)
    at io.netty.channel.AbstractChannelHandlerContext.invokeChannelRead(AbstractChannelHandlerContext.java:360)
    at io.netty.channel.DefaultChannelPipeline.fireChannelRead(DefaultChannelPipeline.java:931)
    at io.netty.channel.nio.AbstractNioByteChannel$NioByteUnsafe.read(AbstractNioByteChannel.java:163)
    at io.netty.channel.nio.NioEventLoop.processSelectedKey(NioEventLoop.java:700)
    at io.netty.channel.nio.NioEventLoop.processSelectedKeysOptimized(NioEventLoop.java:635)
    at io.netty.channel.nio.NioEventLoop.processSelectedKeys(NioEventLoop.java:552)
    at io.netty.channel.nio.NioEventLoop.run(NioEventLoop.java:514)
    at io.netty.util.concurrent.SingleThreadEventExecutor$6.run(SingleThreadEventExecutor.java:1050)
    at io.netty.util.internal.ThreadExecutorMap$2.run(ThreadExecutorMap.java:74)
    at io.netty.util.concurrent.FastThreadLocalRunnable.run(FastThreadLocalRunnable.java:30)
    at java.base/java.lang.Thread.run(Thread.java:829)
Caused by: org.springframework.security.oauth2.jwt.JwtValidationException: Jwt expired at 2022-11-05T16:48:31Z
    at org.springframework.security.oauth2.jwt.NimbusReactiveJwtDecoder.validateJwt(NimbusReactiveJwtDecoder.java:178)
    at reactor.core.publisher.FluxMap$MapSubscriber.onNext(FluxMap.java:100)
    ... 125 common frames omitted

直接看到倒数第4行，是首次发生token校验过期异常，原因是因为倒数第3行NimbusReactiveJwtDecoder.validateJwt方法，跟进去

NimbusReactiveJwtDecoder.validateJwt()

private Jwt validateJwt(Jwt jwt) {
        // 可以看到这里是真正对jwt进行校验的地方
        OAuth2TokenValidatorResult result = this.jwtValidator.validate(jwt);
        // 如果有异常，就抛出
        if ( result.hasErrors() ) {
            String message = result.getErrors().iterator().next().getDescription();
            throw new JwtValidationException(message, result.getErrors());
        }

        return jwt;
    }

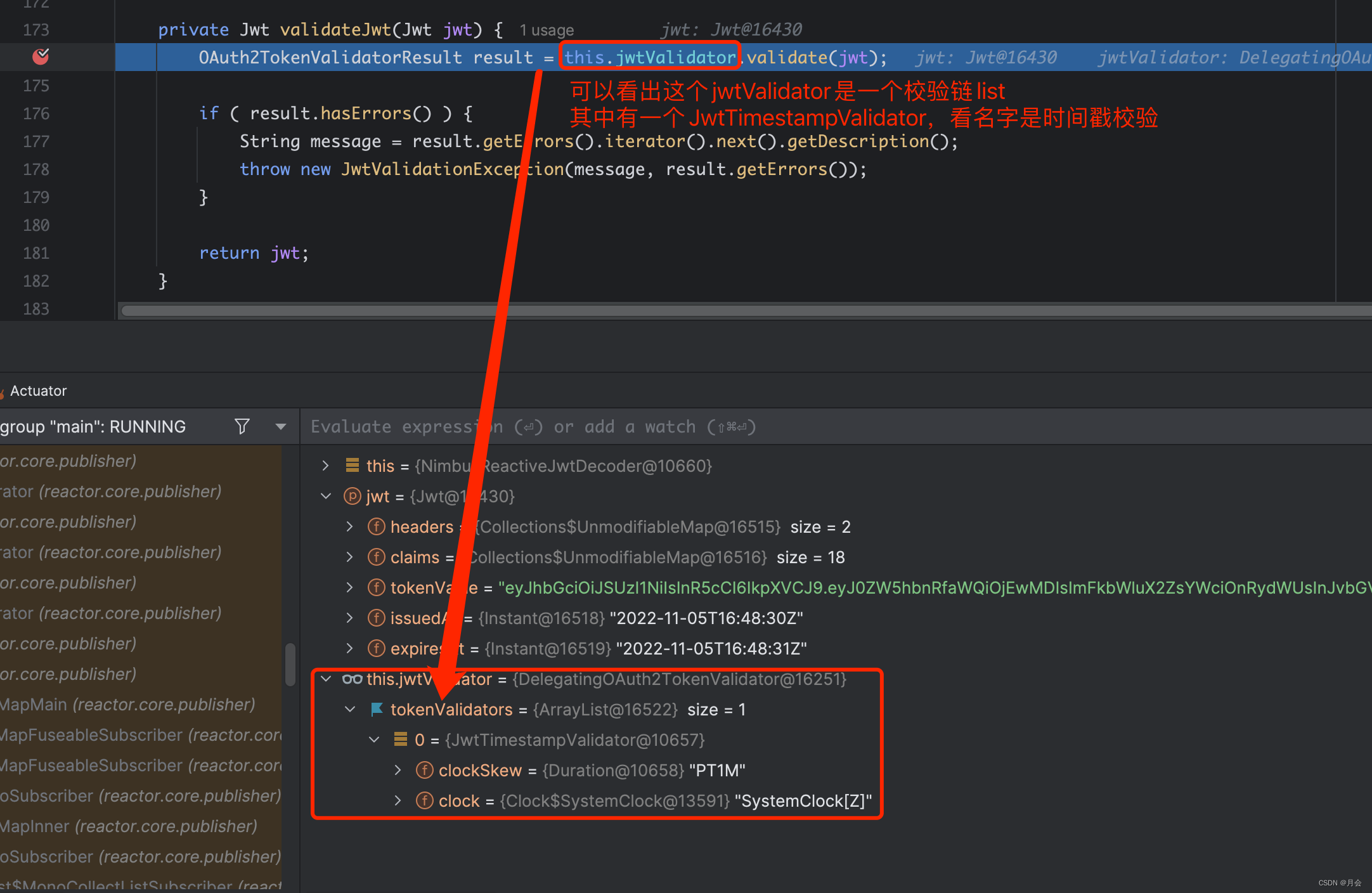

在这里打上端点继续看

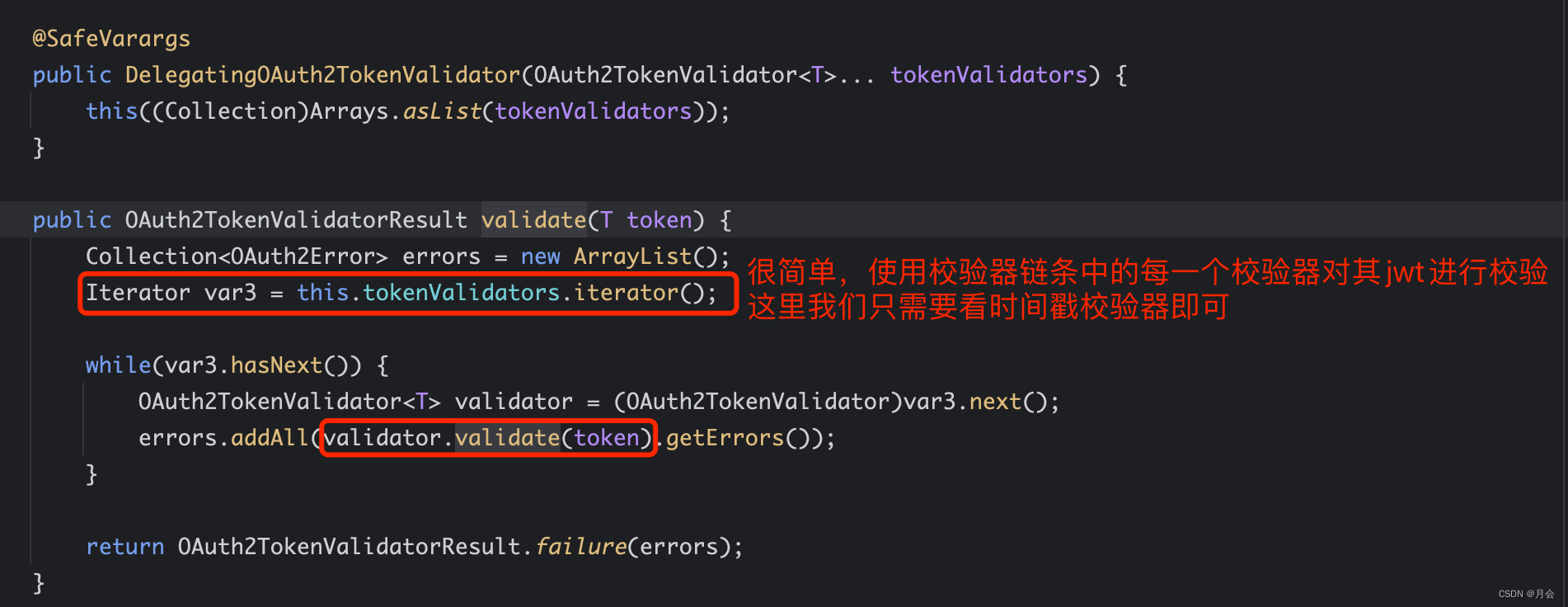

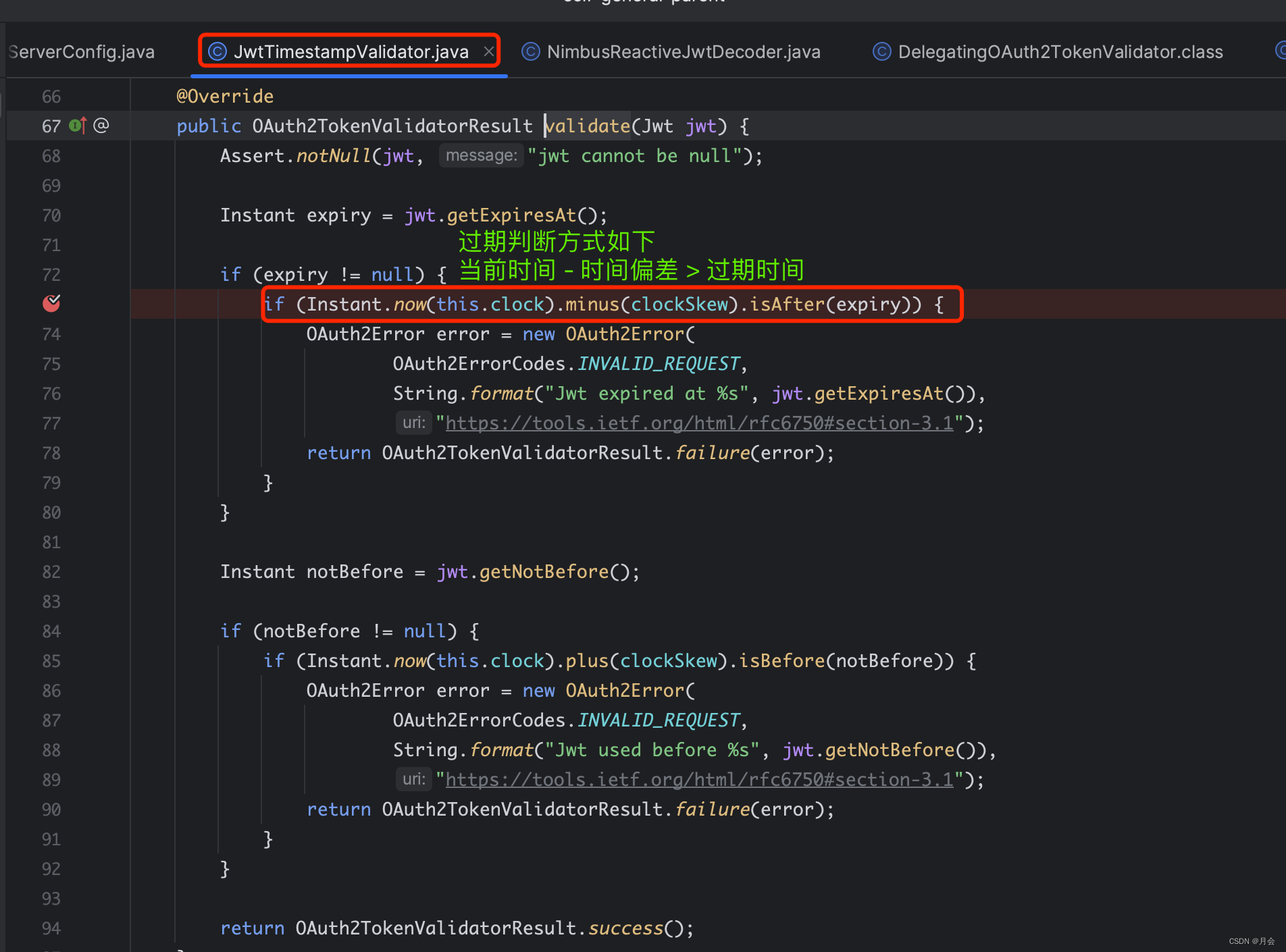

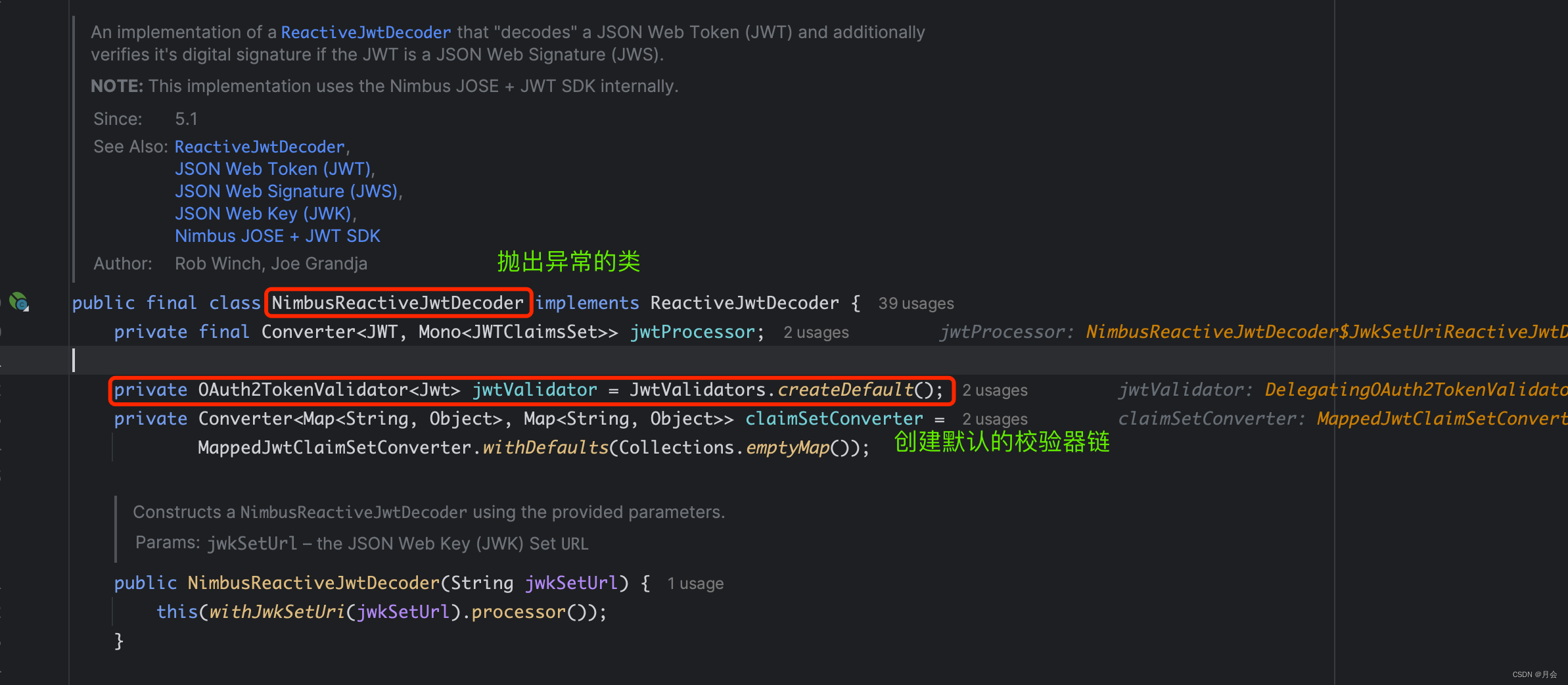

继续进入jwtValidator的validate方法，jwtValidator是DelegatingOauth2TokenValidator

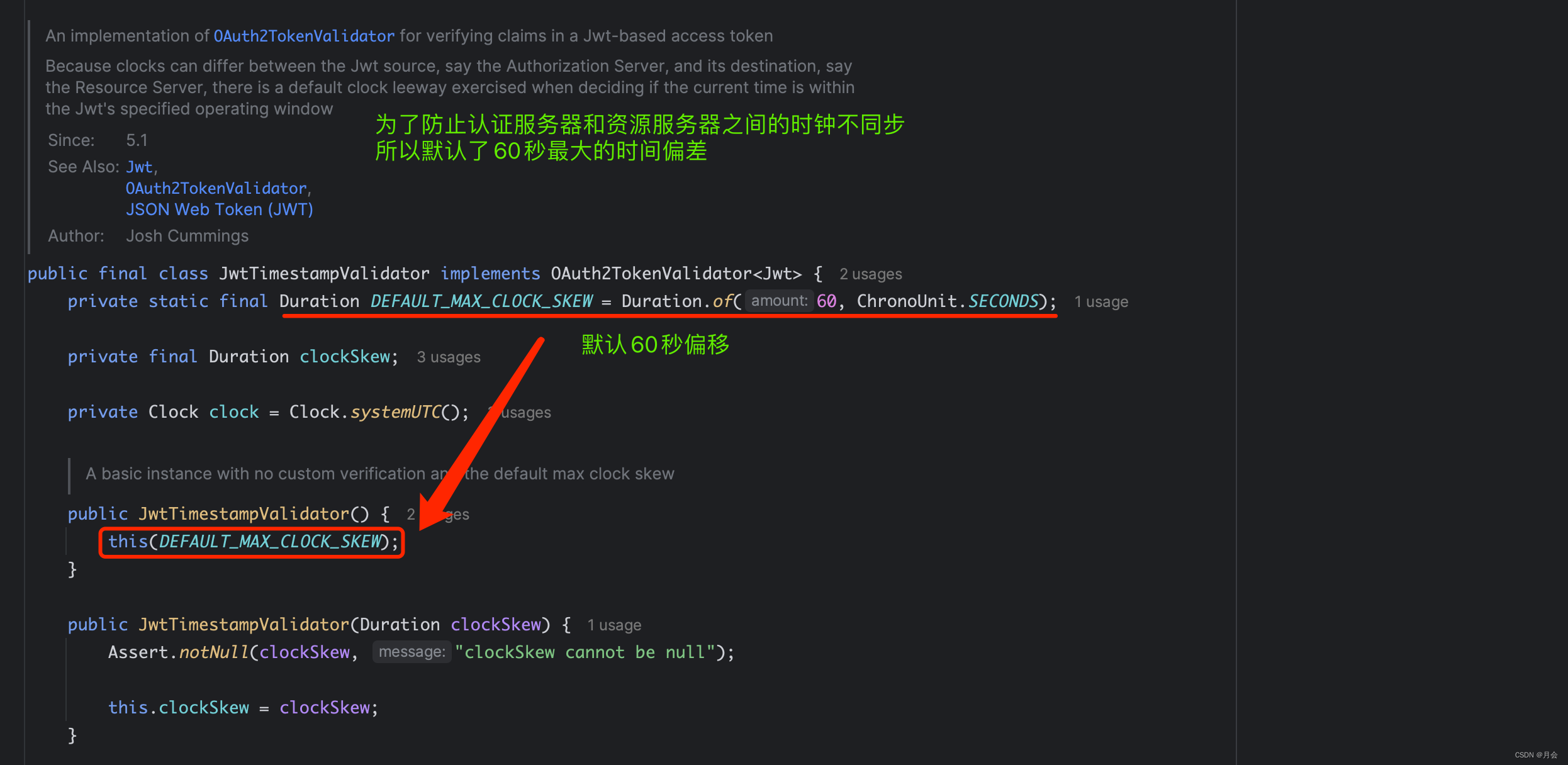

回过头来看看JwtTimestampValidator类的clockSkew字段和JwtTimestampValidator类描述

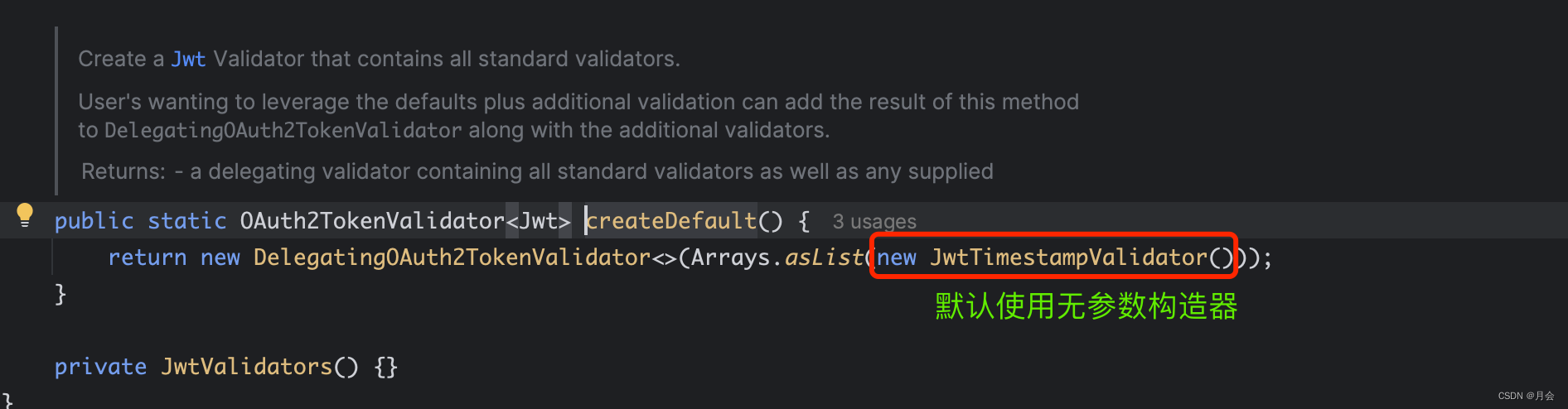

最后再验证一下它确实是使用无参构造创建的该对象

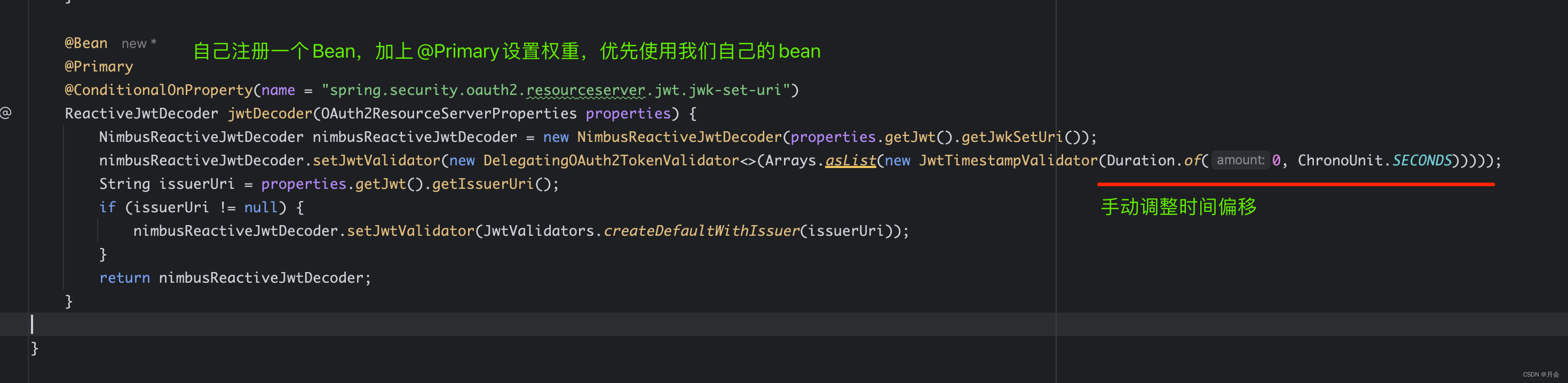

解决办法

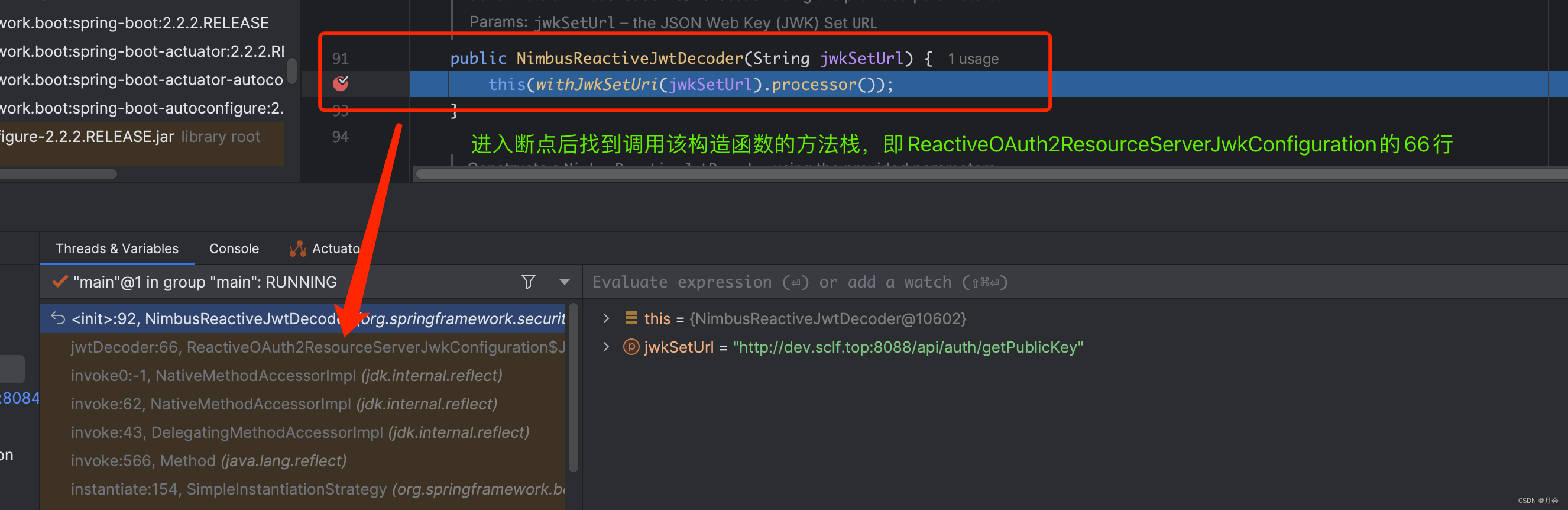

先找到是什么时候创建的NimbusReactiveJwtDecoder,故在NimbusReactiveJwtDecoder的构造器上打断点

由于NimbusReactiveJwtDecoder的构造器有好几个，这里按照自己使用的需求来参考跟踪源码，我这里使用的是如下构造器

public NimbusReactiveJwtDecoder(String jwkSetUrl) {
        this(withJwkSetUri(jwkSetUrl).processor());
    }

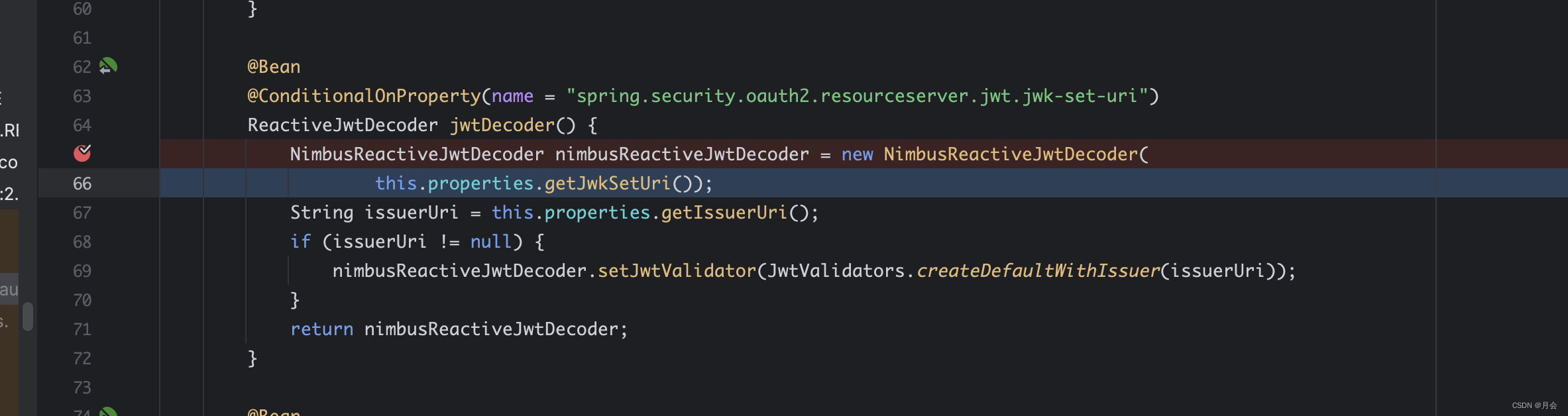

找到ReactiveOAuth2ResourceServerJwkConfiguration的66行可以看到使用了@Bean的方式来做的配置，那么这里我们可以重写这个Bean，然后就可以自定自己的时间偏移量
